REAM LINE
    REAM LINE

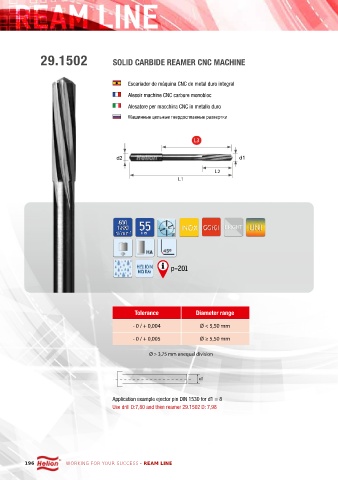

           29.1502           SOLID CARBIDE REAMER CNC MACHINE


                                 Escariador de máquina CNC de metal duro integral
                                 Alesoir machine CNC carbure monobloc
                                 Alesatore per macchina CNC in metallo duro
                                 Машинные цельные твердосплавные развертки

                                                 L3

                              d2                            d1
                                                      L2
                                             L1






                                                         BRIGHT
                                                         BRIGHT


                                           p-201





                                  Tolerance       Diameter range
                                  - 0 / + 0,004    Ø < 5,50 mm
                                  - 0 / + 0,005    Ø ≥ 5,50 mm
                                      Ø > 3,75 mm unequal division


                                                  d1

                             Application example ejector pin DIN 1530 for d1 = 8
                             Use drill D:7,80 and then reamer 29.1502 D: 7,98







       196       WORKING FOR YOUR SUCCESS · REAM LINE
