CLAMP LINE CLAMP LINE

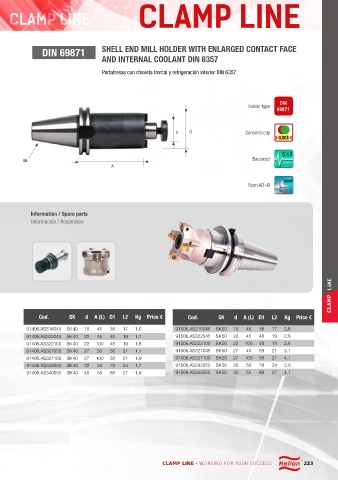

DIN 69871 SHELL END MILL HOLDER WITH ENLARGED CONTACT FACE
AND INTERNAL COOLANT DIN 6357

Portafresas con chaveta frontal y refrigeración interior DIN 6357

DIN
Holder type
69871

d d D D Concentricity
0,003

SK
SK Balanced
A A
Form AD+B

Information / Spare parts
Información / Recambios

CLAMP

Cod. SK d A (L) D1 L2 Kg Price € Cod. SK d A (L) D1 L2 Kg Price €
91406.AS316045 SK 40 16 45 38 17 1,0 91506.AS316045 SK 50 16 45 38 17 2,8
91406.AS322045 SK 40 22 45 48 19 1,1 91506.AS322045 SK 50 22 45 48 19 2,9
91406.AS322100 SK 40 22 100 48 19 1,6 91506.AS322100 SK 50 22 100 48 19 3,6
91406.AS327050 SK 40 27 50 58 21 1,1 91506.AS327045 SK 50 27 45 58 21 3,1
91406.AS327100 SK 40 27 100 58 21 1,9 91506.AS327100 SK 50 27 100 58 21 4,1
91406.AS332055 SK 40 32 55 78 24 1,7 91506.AS332050 SK 50 32 50 78 24 3,9
91406.AS340055 SK 40 40 55 88 27 1,9 91506.AS340055 SK 50 40 55 88 27 4,1

CLAMP LINE · WORKING FOR YOUR SUCCESS 223
