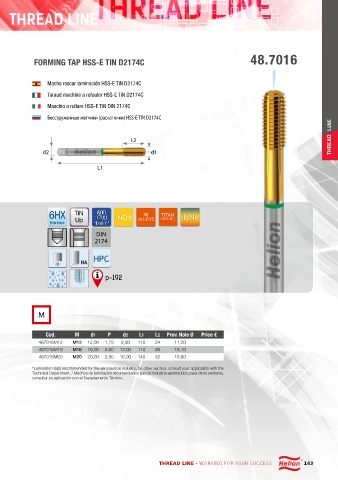

          FORMING TAP HSS-E TIN D2174C                         48.7016

             Macho roscar laminación HSS-E TiN D2174C
             Taraud machine a refouler HSS-E TiN D2174C
             Maschio a rullare HSS-E TiN DIN 2174C
             Бесстружечные метчики (раскатники) HSS-E TIN D2174C

                                 L2                                                THREAD
            d2                         d1

                         L1




             6HX    TiN
             tolerance  Up

                         DIN
                         2174



                           p-192



           M

            Cod.    M   d1  P   d2  L1  L2  Prev. Hole Ø  Price €
           487016M12  M12  12,00  1,75  9,00  110  24  11,20
           487016M16  M16  16,00  2,00  12,00  110  26  15,10
           487016M20  M20  20,00  2,50  16,00  140  32  18,90
         *Lamination taps recommended for the aeronautical industry, for other sectors, consult your application with the
         Technical Department. / Machos de laminación recomendados para la industria aeronáutica, para otros sectores,
         consultar su aplicación con el Departamento Técnico.
