CLAMP LINE CLAMP LINE

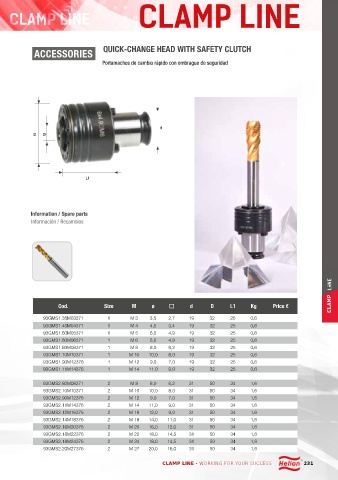

ACCESSORIES QUICK-CHANGE HEAD WITH SAFETY CLUTCH
Portamachos de cambio rápido con embrague de seguridad

d d
D D Ø

L1 L1

Information / Spare parts
Información / Recambios

CLAMP
Cod. Size M ø d D L1 Kg Price €
93GMS1.35M03371 1 M 3 3,5 2,7 19 32 25 0,6
93GMS1.45M04371 1 M 4 4,5 3,4 19 32 25 0,6
93GMS1.60M05371 1 M 5 6,0 4,9 19 32 25 0,6
93GMS1.60M06371 1 M 6 6,0 4,9 19 32 25 0,6
93GMS1.80M08371 1 M 8 8,0 6,2 19 32 25 0,6
93GMS1.10M10371 1 M 10 10,0 8,0 19 32 25 0,6
93GMS1.90M12376 1 M 12 9,0 7,0 19 32 25 0,6
93GMS1.11M14376 1 M 14 11,0 9,0 19 32 25 0,6
93GMS2.80M08371 2 M 8 8,0 6,2 31 50 34 1,6
93GMS2.10M10371 2 M 10 10,0 8,0 31 50 34 1,6
93GMS2.90M12376 2 M 12 9,0 7,0 31 50 34 1,6
93GMS2.11M14376 2 M 14 11,0 9,0 31 50 34 1,6
93GMS2.12M16376 2 M 16 12,0 9,0 31 50 34 1,6
93GMS2.14M18376 2 M 18 14,0 11,0 31 50 34 1,6
93GMS2.16M20376 2 M 20 16,0 12,0 31 50 34 1,6
93GMS2.18M22376 2 M 22 18,0 14,5 31 50 34 1,6
93GMS2.18M24376 2 M 24 18,0 14,5 31 50 34 1,6
93GMS2.20M27376 2 M 27 20,0 16,0 31 50 34 1,6
CLAMP LINE · WORKING FOR YOUR SUCCESS 231
